Implementing the NativeScript Theme in Plugins

For plugins that use UI components, we highly recommend implementing the NativeScript core theme. It's up to you to decide if light and dark skins are enough or you want to implement more. Before continue reading make sure you read the basics about NativeScript theme and review the NativeScript Theme repository

To review the working example, you can refer to this branch of the NativeScript Custom UI Plugin repository.

Prerequisites

This article is built on top of a custom UI plugin which is an example for another article about Building UI Plugin using Custom Components in this documentation.

We are using .scss files to define our plugin styles. So make sure you run the following commands in your plugin source folder:

• npm install node-sass —save-dev to install the node-sass library to compile .scss files into .css files.
• npm install nativescript-theme-core —save-dev to install the NativeScript core theme

Plugin Code Changes

As we mentioned above, the starting point for this article is the repository showing how to build UI plugin. Before you start defining style definitions to the custom button created in the example, open my-button.common.ts and add the following constructor to MyButtonBase class:

function MyButtonBase() {
    var _this = _super.call(this) || this;
    _this.className = "mybtn";
    return _this;
}

constructor() {
    super();
    this.className = "mybtn";
}

This will add a mybtn class name to our custom button element.

NOTE: If you want to customize font styles and color, make sure your custom component inherits from TextBase instead of View.

Implementation

In this example we will implement two main skins of the NativeScript core theme - dark and light. Any other skin can be implemented in a similar way.

Review NativeScript Core Theme supported skins.

Files Structure and Contents

Add folder scss to your plugin source folder having the following structure:

scss
├── _mybutton.scss
├── _variables.scss
├── mybutton.dark.android.scss
├── mybutton.dark.ios.scss
├── mybutton.light.android.scss
├── mybutton.light.ios.scss
├── platforms
│   ├── _mybutton.android.scss
│   └── _mybutton.ios.scss
└── skins
    ├── _variables.dark.scss
    └── _variables.light.scss

_variables.scss describes your plugin scss variables that will be used to specify different styles for the different theme skins or platforms. In our example it contains the following definitions:

$mybtn-color: $primary;
$mybtn-background-color: $secondary;
$mybtn-border-color: $btn-color;
$mybtn-border-width: 10;
$mybtn-border-radius: 10;
$mybtn-opacity: 1;

You can see that variables $primary, #secondary and $btn-color are used. They are defined in the NativeScript core theme.

_mybutton.scss describes the base style definition of the component class. In our case this is mybtn:

.mybtn {
  padding: 20;
  background-color: $mybtn-background-color;
  color: $mybtn-color;
  font-size: 20;
  font-weight: bold;
  font-style: normal;
  text-align: center;
  text-decoration: none;
  text-transform: lowercase;
  margin: 20;
  border-color: $mybtn-border-color;
  border-width: $mybtn-border-width;
  border-radius: $mybtn-border-radius;
  width: 200;
  opacity: $mybtn-opacity;
}

For full list of css properties that you can use, you can refer to (Styling)[{ % styling % }].

skins/_variables.light.scss and skins/_variables.dark.scss override some of the variables depending on the theme skin - dark or light. More skin overrides can be added to this folder (i.e. sky, lime, etc...).

skins/_variables.light.scss:

@import '../../node_modules/nativescript-theme-core/scss/light';
@import '../variables';

$mybtn-opacity: 0.3;
$mybtn-border-color: $forest;
$mybtn-background-color: $forest;
$mybtn-color: $white;

skins/_variables.dark.scss:

@import '../../node_modules/nativescript-theme-core/scss/dark';
@import '../variables';

$mybtn-opacity: 0.8;
$mybtn-border-color: $lime;
$mybtn-background-color: $lime;
$mybtn-color: $black;

platforms\_mybutton.android.scss and platforms\_mybutton.ios.scss override some of the variables depending on the platform - iOS or Android.

platforms_mybutton.android.scss:

// Variables overrides for Android

$mybtn-border-width: 5;
$mybtn-border-radius: 5;

// Import common styles
@import '../mybutton';

// Describe Android specific styles

platforms_mybutton.ios.scss:

// Variables overrides for ios

$mybtn-border-width: 5;
$mybtn-border-radius: 15;

// Import common styles
@import '../mybutton';

// Describe iOS specific styles

The other files are the entry point for each combination of skin and platform:

• mybutton.dark.android.scss
• mybutton.dark.ios.scss
• mybutton.light.android.scss
• mybutton.light.ios.scss

What you need to do in each of them is just import the corresponding skin and platform specific scss files. For example mybutton.dark.android.scss has the following content:

@import 'skins/variables.dark';
@import 'platforms/mybutton.android';

SCSS compilation

Once you have all your styles defined per skin and platform, you're ready to compile the scss files to css. To do so, open your command prompt or terminal and run the following command from your plugin source folder:

node_modules/node-sass/bin/node-sass scss --output css

This will do the compilation and save the result css files in a css folder. There you can find one file for each combination of skin and platform. In our example there will be four files:

css
├── mybutton.dark.android.css
├── mybutton.dark.ios.css
├── mybutton.light.android.css
└── mybutton.light.ios.css

Usage

Now, the plugin from the example has 2 skins and is ready to be used along with NativeScript theme and dark and light skins. To use the dark skin of NativeScript theme in your app and apply it to your plugin, all you need to is add the following to app.css:

@import 'nativescript-theme-core/css/core.dark.css';
@import 'nativescript-ui-plugin-custom/css/mybutton.dark.css';

For light skin, just import the corresponding light files to app.css.

Screenshots

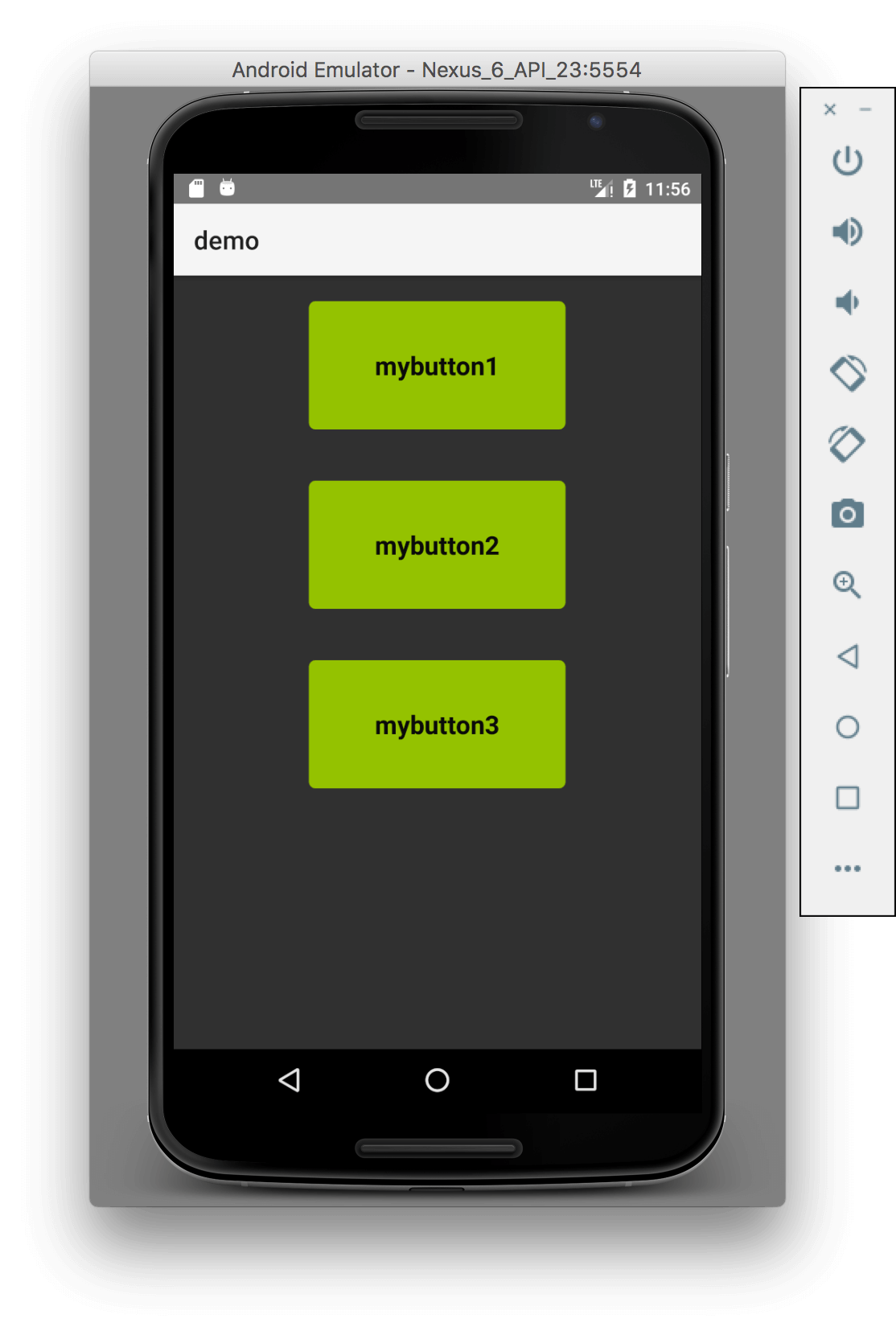

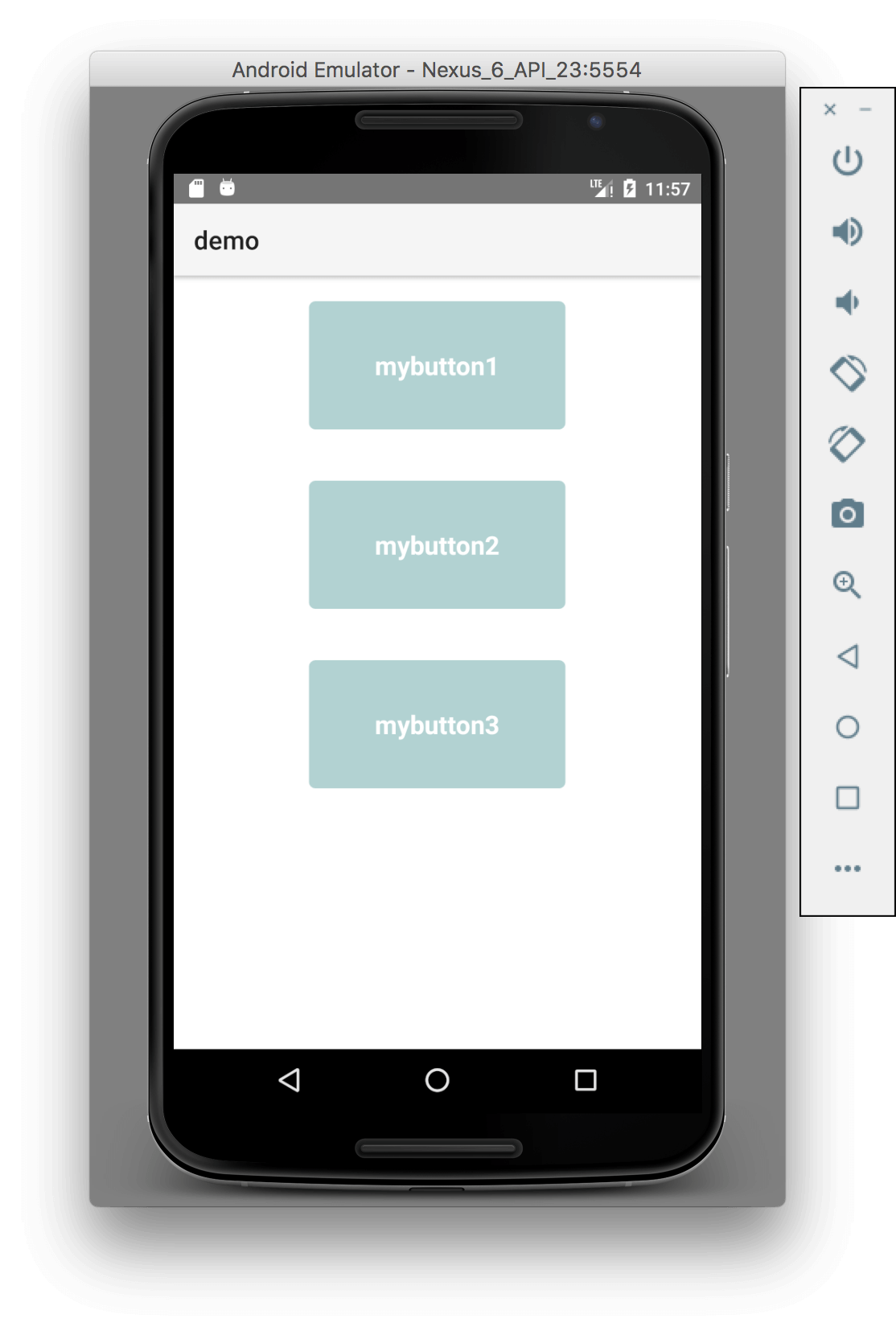

Dark skin on Android Dark skin on iOS Light skin on Android Light skin on iOS
